Retaining Wall Drainage Design: How to Solve and Prevent Costly Failures

A retaining wall is actually a drainage system disguised as a wall; if the water can’t move, the wall certainly will. During Northern California’s intense atmospheric rivers, a 6.5-foot wall with saturated soil behind it experiences double the lateral pressure of a properly drained structure. This immense weight is exactly why many Bay Area homeowners struggle with leaning masonry, unsightly staining, or the fear of a total collapse. A professional retaining wall drainage design isn’t an optional upgrade. It’s the structural foundation that ensures your backyard remains a safe environment for your family while securing your property’s long-term value.

We understand the frustration of seeing your investment crack under pressure and the uncertainty that comes with potential repair costs. You deserve a permanent, warrantied solution that eliminates the guesswork. This article reveals the engineering secrets of fail-proof drainage systems. We’ll examine the 2024 International Building Code requirements, the critical role of non-woven geotextiles, and the precise placement of perforated pipes. Follow this guide to transform a failing barrier into a stable, high-performance asset for your home.

Why Water is the Silent Killer of Retaining Walls

A retaining wall is a structural necessity that often fails because of an invisible force: water. Most homeowners focus on the aesthetics of the stone or timber, but the real battle happens behind the facade. When rain falls, it doesn’t just run off the surface; it penetrates the soil. This creates subsurface water accumulation that can’t escape if the retaining wall drainage design is flawed. If you see water weeping through the face of your wall, don’t mistake it for a working drainage system. It’s actually a distress signal. It means the internal pressure has reached a point where the water is seeking any possible exit, often carrying soil particles with it and weakening the wall’s core.

Understanding the difference between surface runoff and subsurface water is vital for property protection. Surface runoff is the water that flows over the top of the landscape, which is typically managed with grading and swales. Subsurface water is the moisture that saturates the backfill behind the wall. This is the “silent killer” that requires a dedicated drainage system to evacuate. Without a clear path for this water to exit, the structure becomes a dam. Dams are designed to hold water; retaining walls are not.

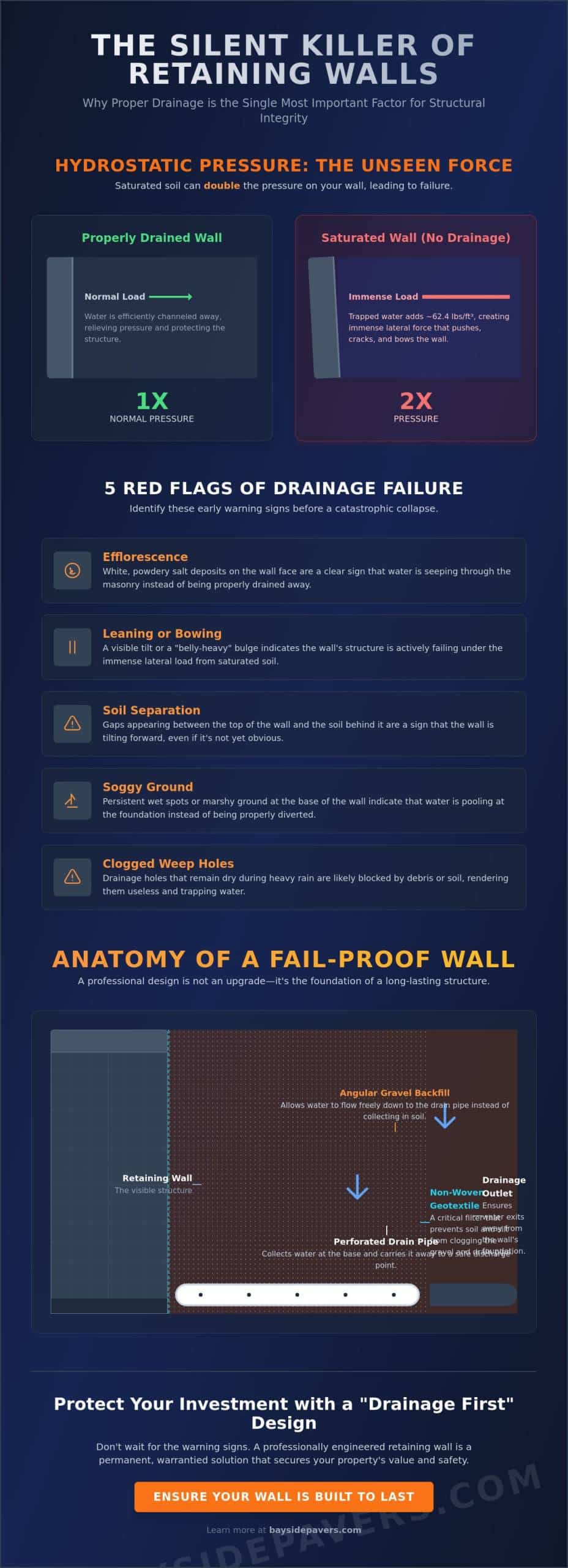

The Impact of Hydrostatic Pressure

Hydrostatic pressure is the primary cause of wall tilting and eventual structural collapse. It occurs when water pools behind the wall, filling the tiny air pockets in the soil and exerting massive lateral force. Water is heavy, adding approximately 62.4 pounds of weight per cubic foot to the soil load. Dry soil typically weighs between 100 and 120 pounds per cubic foot, but once saturated, that weight increases dramatically. A 6.5-foot wall with fully saturated soil experiences double the lateral pressure compared to a dry wall. This force creates a characteristic “bulge” in the middle of the wall. It’s a physical manifestation of thousands of pounds of force trying to move your hardscape. Without an outlet, the physics are simple: the wall will eventually move or crack.

Bay Area Soil: The Clay Complication

Bay Area landscapes present a unique challenge due to the high concentration of expansive clay soil, particularly in areas like Walnut Creek and Danville. Unlike sandy soils that allow water to pass through quickly, clay acts like a heavy sponge. It absorbs water and holds it for weeks. This extended saturation keeps your wall under peak pressure long after the atmospheric river has passed. In Northern California, drainage isn’t about preventing freeze-thaw cycles; it’s about managing the sheer volume of water trapped in heavy clay. Without a specialized retaining wall drainage design, these soils will eventually push even the most robust masonry out of alignment. We don’t just build for the summer; we engineer for the saturated winters that define our region.

5 Red Flags: Identifying Retaining Wall Drainage Problems Early

Identifying a failing retaining wall drainage design before a total collapse occurs is a critical skill for any Bay Area property owner. While some issues are obvious, others masquerade as minor maintenance tasks. Catching these early prevents a small repair from turning into a five-figure replacement. If you notice any of these five red flags, your wall is likely struggling with internal water pressure:

• Efflorescence: Those white, powdery salt deposits on the wall face aren’t just an eyesore. They indicate that water is continuously seeping through the masonry because it has no other escape route.
• Soil separation: Look for gaps appearing between the soil backfill and the wall cap. This separation suggests the wall is tilting forward, even if the movement isn’t yet visible to the naked eye.
• Leaning or bowing: If the wall looks “belly-heavy” or tilts away from the slope, the drainage system has already failed to manage the lateral load.
• Soggy ground: Persistent wet spots at the base of the wall long after an atmospheric river has passed indicate that water is pooling at the foundation rather than being diverted away.
• Clogged weep holes: If your wall has dedicated drainage holes that remain dry during heavy rain, they’re likely blocked by debris or calcium buildup.

Aesthetic vs. Structural Warning Signs

Surface staining is often a nuisance, but deep structural cracking or sinkholes appearing behind the wall are emergencies. According to the U.S. Army Corps of Engineers guidance on retaining walls, internal erosion caused by poor drainage is a leading cause of catastrophic failure. Sinkholes indicate that “fines,” which are small soil particles, are being washed out from behind the wall. This leaves hollow voids that eventually cause the ground and the wall to cave in. A leaning wall is rarely just a weight issue; it’s almost always a foundation drainage failure. Don’t ignore a tilt just because the stones haven’t fallen yet.

The Rainy Day Test for Homeowners

The best time to inspect your hardscape is during an active Bay Area storm. Grab an umbrella and walk your property to see how your retaining wall drainage design handles the volume. Water should be exiting predictably through weep holes or the “daylight” end of a drain pipe. It should never be overtopping the wall like a waterfall. Overtopping means the internal system is completely overwhelmed or non-existent, forcing water to find the path of least resistance over the cap. If you notice water pooling at the base or flowing over the top, your retaining wall installation requires a professional inspection to prevent further displacement. Look for clear, consistent flow from the designated outlets. If the water is muddy, it’s a sign that your backfill is being lost to internal erosion.

The Anatomy of a Fail-Proof Retaining Wall Drainage Design

A fail-proof retaining wall drainage design is a coordinated system of engineering components, not a single product. Each layer serves a specific purpose in moving water away from the structure as quickly as possible. When these components are installed correctly, they prevent the hydrostatic pressure we discussed earlier from ever reaching critical levels. A breakdown in even one of these elements can lead to systemic failure during a heavy Northern California winter.

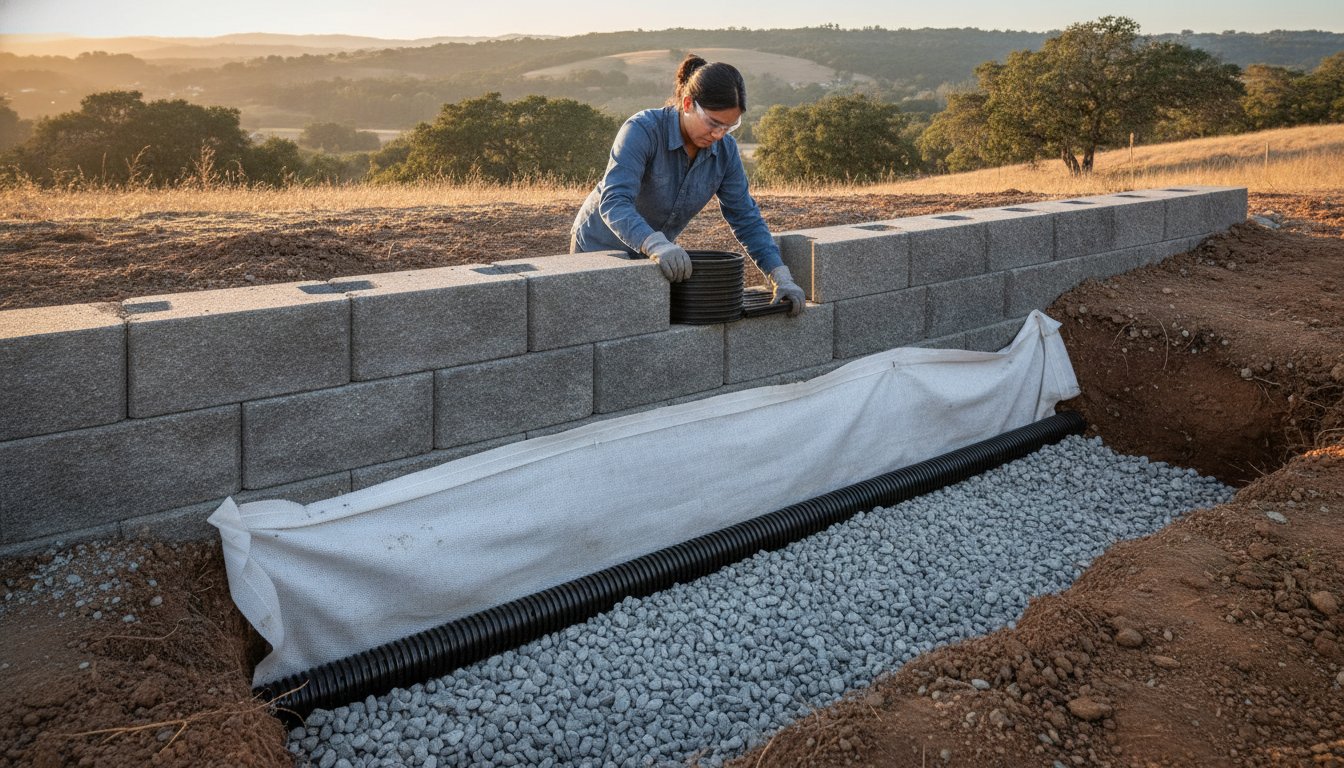

The foundation of this system is the 4-inch perforated pipe. Placement is critical; it must sit at the base of the wall, slightly above the footing. We always install these pipes with the perforations facing downward. This allows water to enter the pipe from below as the water table rises, rather than waiting for it to fall through the top. To ensure positive flow, the pipe requires a minimum slope of 1/8 inch per foot toward the discharge point. This prevents stagnant water from pooling at the base of your wall.

To protect the system from clogging, we wrap the drainage area in a non-woven geotextile filter fabric. This fabric must meet high in-plane flow rate standards, such as those defined by ASTM D4716/D4716M-22. It acts as a permanent filter, allowing water to pass into the drainage column while keeping fine silt and clay particles out. Without this barrier, the expensive gravel backfill eventually turns into a muddy, non-porous mess that traps water against the wall.

The Critical Role of Backfill Material

Native soil is the enemy of a stable wall. In the Bay Area, our expansive clay soils expand when wet and contract when dry, creating a “jacking” effect that destroys masonry. We replace this native material with a minimum 12-inch column of clean, angular 3/4-inch crushed stone. Unlike rounded pea gravel, which acts like a pile of marbles, angular stone interlocks under pressure. This provides the dual benefit of rapid water transit and superior structural support for the wall face. The gravel “chimney” should extend from the pipe at the base up to within 6 inches of the top of the wall.

Weep Holes and Exit Points

Solid concrete or masonry walls require weep holes every four feet to provide secondary drainage. These openings allow any water that bypasses the main pipe to exit through the wall face safely. However, the primary exit point is the “daylight” end of the perforated pipe. You must direct this discharge to a safe location, such as a storm drain or a lower part of the property. Improper discharge management can flood your own foundation or lead to legal disputes with neighbors if water is dumped onto their land. A professional retaining wall drainage design accounts for the entire journey of the water, from the slope to the street.

How to Fix and Prevent Drainage Failure in Your Hardscape

Fixing a compromised retaining wall drainage design requires a methodical approach. Ignoring a leaning wall won’t make the soil settle; it only invites a more expensive collapse. Early detection allows for targeted maintenance that can save the entire structure. Start by clearing existing weep holes. These often clog with calcium deposits or soil “fines” over time. Use a masonry bit or a high-pressure nozzle to ensure water can actually flow through these openings. Next, locate the daylight end of your drain pipe. It’s common for roots or rodent nests to block these exits, causing water to back up into the gravel chimney and increase pressure.

Surface water management is your next line of defense. You must divert water away from the top of the wall before it becomes subsurface pressure. Use swales or gutters to catch runoff from higher elevations. Ensure the ground behind the wall cap has a minimum 2% slope away from the structure to prevent ponding. If you notice the wall has moved more than one inch from its original position, stop the DIY efforts. This degree of displacement suggests a deep structural failure that requires a professional assessment. In cases where the internal pipe has collapsed or was never installed, a total rebuild is often the only permanent, warrantied solution.

Retrofitting Drainage in Existing Walls

Many homeowners ask about drilling new drainage holes into an old wall. While this provides some immediate relief, it’s usually a temporary band-aid. Drilling doesn’t fix a clogged or missing gravel column. For a lasting fix, you often need to excavate the soil behind the wall to install a proper filter fabric and drainage stone. If total excavation isn’t feasible, we sometimes use behind-the-wall diversion techniques to redirect water before it hits the saturated zone. However, a permanent fix almost always involves addressing the core engineering behind the face of the wall.

Preventative Design for New Builds

When starting from scratch, we design for the 100-year storm event. This means over-engineering the drainage to handle the most extreme Bay Area weather. One effective strategy is integrating permeable driveway pavers california at the base or top of the wall. These systems manage rising water tables by allowing moisture to filter through the ground naturally rather than pooling against the masonry. Proper grading remains the most overlooked step. Always ensure the surface behind the wall is compacted and sloped to prevent ponding. If you’re concerned about the stability of your current landscape, contact Bayside Pavers for a structural wall assessment.

Long-Term Protection: The Bayside Pavers Approach to Structural Integrity

At Bayside Pavers, we operate under a “Drainage First” engineering philosophy. We recognize that the most beautiful stonework in the world is worthless if the soil behind it isn’t properly managed. While many contractors treat drainage as an afterthought or a hidden cost, we treat it as the primary structural component of the project. Our retaining wall drainage design is built to withstand the unique geological pressures of Northern California, ensuring that water is evacuated before it can compromise the wall’s foundation. To maintain this standard, we assign a dedicated project manager to every build. This manager’s sole focus is to oversee the critical details that often get buried, such as the precise slope of the pipe and the integrity of the filter fabric wrap.

Our commitment to quality is backed by a 25-year structural warranty. This provides the long-term security Bay Area homeowners need when investing in their property’s infrastructure. We’ve developed a streamlined three-step process to take the anxiety out of your project:

• Consultation: We assess your site’s specific topography and soil type to determine the right engineering requirements.
• All-Inclusive Pricing: You receive a transparent quote that includes all necessary drainage components with no hidden fees or surprise change orders.
• The Build: Our disciplined crews execute the plan with surgical precision, moving your project from excavation to completion on a logical, efficient timeline.

Why Professional Installation Outlasts DIY

Precision is the difference between a wall that lasts five years and one that lasts fifty. A common DIY mistake is “pipe bellying,” where a drain pipe isn’t perfectly graded, allowing sediment to settle in low spots and eventually clog the system. Our teams use laser levels to ensure a consistent 1/8 inch per foot slope. We also use high-grade non-woven geotextiles and clean angular stone that exceeds the minimum 12-inch column standard. Furthermore, we ensure every project remains in full compliance with local Bay Area building codes. While national standards often require engineering for walls over 4 feet, many local municipalities have stricter requirements for walls over 3 feet. We handle the permitting and compliance so you don’t have to worry about future liability.

Your Next Steps for a Secure Landscape

Protecting your property value starts with an honest assessment of your current hardscape. If you’ve noticed leaning, cracking, or poor water flow, it’s time to consult with an expert who understands the physics of retaining wall drainage design. Our all-inclusive pricing model means you won’t be penalized for doing the job right. We include the high-performance gravel, professional-grade pipes, and specialized fabrics required for a permanent solution in our initial quotes. Don’t wait for the next atmospheric river to test the limits of a failing wall. Protect your investment with Bayside Pavers by booking your free design consultation today.

Secure Your Property with Precision Engineering

Your property’s stability depends entirely on what happens behind the wall face. We’ve explored how hydrostatic pressure can double the load on your hardscape and why a professional retaining wall drainage design is the only way to prevent structural collapse. By identifying red flags like efflorescence early and ensuring your system uses the correct angular stone and filter fabric, you protect your home from the destructive force of Northern California’s rainy seasons. A wall that doesn’t manage water is simply a dam waiting to fail.

You don’t have to manage these complex engineering challenges alone. Bayside Pavers provides a 25-Year Structural Warranty and a dedicated project manager for every build to ensure your peace of mind. With a 3-week average project completion time, we deliver a permanent solution without the typical construction delays or hidden fees. Take the first step toward a safer, more stable backyard today. Schedule Your Free Retaining Wall Assessment Today and secure your investment for decades to come. We’re ready to help you build a landscape that stands the test of time.

Frequently Asked Questions

Is it normal for water to come out of the weep holes in my retaining wall?

Yes, seeing water exit through weep holes is a sign that your system is functioning correctly. These openings are designed to relieve the hydrostatic pressure that builds up behind the masonry. If your weep holes remain dry during a heavy storm, it likely means the internal drainage is blocked. This creates a dangerous situation where water weight is trapped against the structure, leading to potential failure.

How much does it cost to fix retaining wall drainage problems?

Repair costs depend on the severity of the failure and the accessibility of the wall. Minor maintenance, such as clearing debris from weep holes, is a straightforward task. However, if the wall has moved significantly, you may need a total rebuild to install a proper retaining wall drainage design. We provide transparent, all-inclusive quotes during our assessments so you know the exact scope of the investment required for your specific site.

Can I add drainage to a retaining wall that is already built?

You can retrofit drainage into an existing wall, though it is often a labor-intensive process. Common methods include drilling new weep holes or excavating the soil behind the wall to install a French drain. While these steps help, they are often secondary to a system installed during the original construction. A professional evaluation can determine if a retrofit is a viable long-term fix or just a temporary band-aid.

What happens if a retaining wall has no drainage?

A wall without drainage is essentially a dam that will eventually succumb to the weight of saturated soil. Water trapped behind the wall increases the lateral pressure by thousands of pounds. In the Bay Area, our heavy clay soils expand when wet, which accelerates the process of tilting and cracking. Without an exit path for moisture, structural failure isn’t a matter of if, but when.

How do I know if my retaining wall drain pipe is clogged?

A dry discharge pipe during a heavy storm is the most obvious sign of a clog. If you see water pooling at the base of the wall or spilling over the top cap, the internal system is likely obstructed. Roots, sediment, and rodent nests often block the “daylight” end of the pipe. Regular inspections of the outlet can prevent these blockages from causing a catastrophic wall failure.

Why is my retaining wall leaning even though there is a drain pipe?

A leaning wall with a pipe usually indicates an installation error or a lack of filter fabric. If the pipe was installed without a proper slope or has “bellied” in the middle, water will pool rather than drain. Additionally, if the system lacks a geotextile wrap, silt and clay will eventually fill the gravel and pipe. This renders the retaining wall drainage design useless regardless of the pipe’s presence.

Does a 2-foot retaining wall need a drainage system?

Yes, even shorter walls require a drainage strategy to prevent shifting and heaving. While a 2-foot wall doesn’t carry the same load as a 6-foot structure, Bay Area clay still exerts significant pressure when saturated. Installing a simple gravel chimney and a perforated pipe ensures the wall remains level and prevents the soil from becoming a muddy mess at the base of your hardscape.

What is the best gravel to use for retaining wall drainage in the Bay Area?

Clean, angular 3/4-inch crushed stone is the most effective material for drainage in our region. Unlike rounded pea gravel, angular stone interlocks under pressure to provide better structural stability for the wall. It also creates large voids that allow water to move quickly toward the drain pipe. We always specify this material to ensure the highest level of performance and stability for our clients.
